About PowerLite® Fasteners
MAX manufactures specialty fasteners for different types of heavy-duty concrete and steel applications to work with the MAX PowerLite® 500PSI system. MAX PowerLite® 500PSI system enables contractors to work more productively and extremely cost effectively at every jobsite where you may have use Gas operated or Powder actuated tools (P.A.T) currently. MAX PowertLite Fasteners come with either 50 pins (For HN120) or 100 pins (For HN25C) in a coil which maximizes efficiency by reducing reloading of tools. The HN120 and the HN25C PowerLite® High Pressure tools are lightweight and compact yet powerful and are the ideal tools for shooting a variety of heavy-duty applications such as Steel I-beam and Concrete in jobsites.
Available PowerLite® Fasteners
Click or Tap the Red Circle to see the Fastener Types and Specs Data Sheets for downloading.
Commercial Buildings
Residential Houses
Filters by fastener type
Choose fastener type from the following filters and available fasteners are shown in the jobsite images above.
Application
Tool Type
Fastener Shank Dia.
Fastener Shank Type
* Internet Explorer is not supported to show all features on this webpage. Please use current versions of other browsers.
For Hard Concrete (6,000 psi or harder) and Steel I-Beam
| Top Member | Bottom Member | Shank length | Shank Dia. | Item Name | ICC ESR Report | Testing Data | Pins/ Coil | Case Qty. | Shank Type | Shank Image | Tool |
|---|---|---|---|---|---|---|---|---|---|---|---|

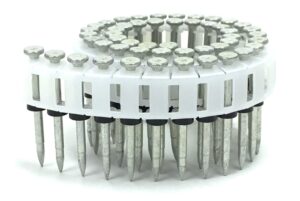

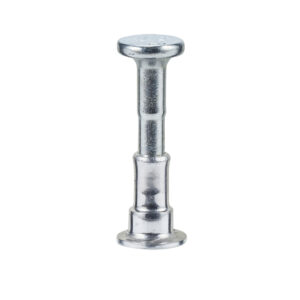

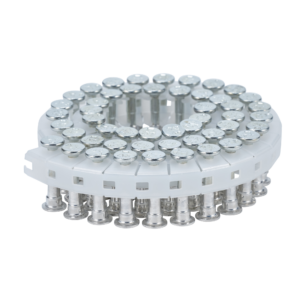

| Light Gauge Steel | Concrete or Steel(Up to 1/2”) | 3/4” | .133”/.122” | CP-W820W4SP AL | ESR-4320 | Download | 50 | 1,000 | Step w/ Top Hat |  |
HN120 |

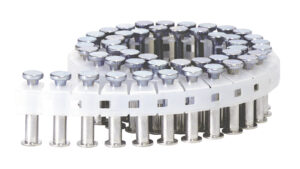

| Light Gauge Steel | Concrete or Steel(Up to 1/2”) | 7/8” | .133”/.122” | CP-W823W4SP AL | ESR-4320 | Download | 50 | 1,000 | Step w/ Top Hat | |
HN120 |

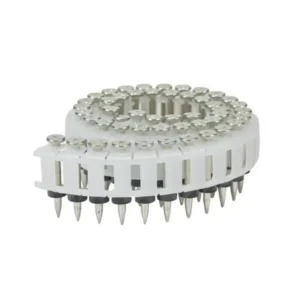

| Light Gauge Steel | Concrete or Steel(Up to 1/2”) | 7/8” | .133”/.122” | CP-W823W4SP | ESR-4320 | Download | 50 | 1,000 | Step w/ washer |  |
HN120 |

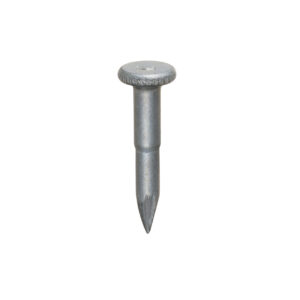

| Light Gauge Steel | Concrete or Steel(Up to 3/16”) | 11/16” | .118“/.102" | CP-W618W0SP | ESR-4320 | Download | 100 | 1,000 | Step w/ washer | |
HN25C |
For Regular Concrete (6,000 psi or less)
| Top Member | Bottom Member | Shank length | Shank Dia. | Item Name | ICC ESR Report | Testing Data | Pins/ Coil | Case Qty. | Shank Type | Shank Image | Tool |
|---|---|---|---|---|---|---|---|---|---|---|---|

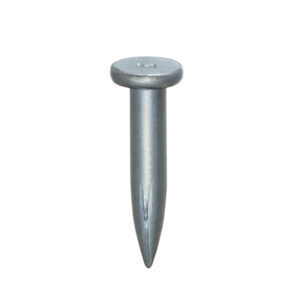

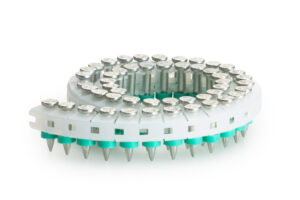

| Light Gauge Steel | Concrete | ¾”+.079” | .157” | CP-C821X0SP-ICC | ESR-4320 | Download | 50 | 1,000 | Smooth w/ Washer |  |
HN120 |

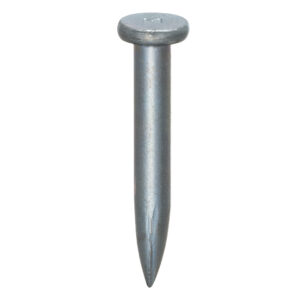

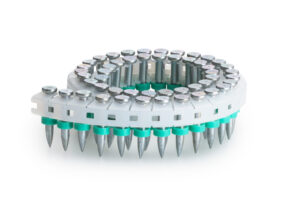

| Light Gauge Steel | Concrete | 1”+.079” | .157” | CP-C828X0SP-ICC | ESR-4320 | Download | 50 | 1,000 | Smooth w/ Washer | |
HN120 |

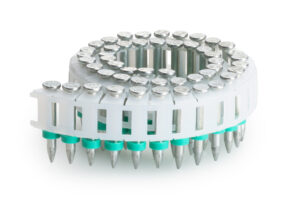

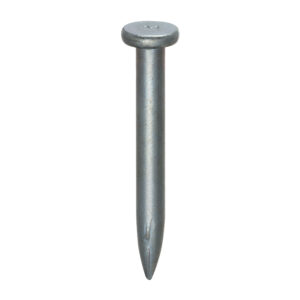

| Light Gauge Steel | Concrete | 1-1/4”+.079” | .157” | CP-C834X0SP-ICC | ESR-4320 | Download | 50 | 1,000 | Smooth w/ Washer | |
HN120 |

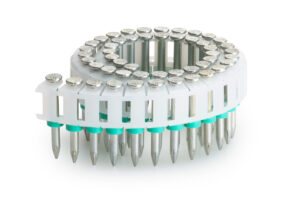

| Light Gauge Steel | Concrete | 1-1/2”+.079” | .157” | CP-C840X0SP-ICC | ESR-4320 | Download | 50 | 1,000 | Smooth w/ Washer | |
HN120 |

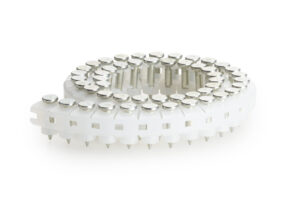

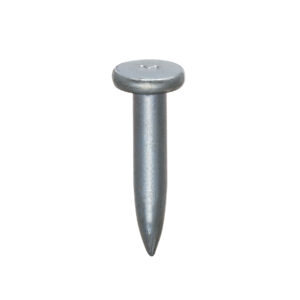

| Light Gauge Steel | Concrete | 3/4” | .145” | CP-C819W7-ICC | ESR-4320 | Download | 50 | 1,000 | Smooth w/ Washer |  |
HN120 |

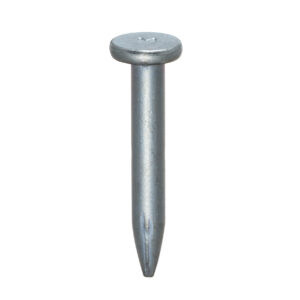

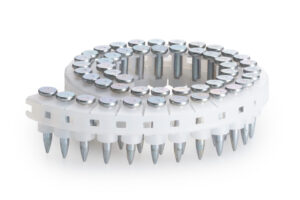

| Light Gauge Steel | Concrete | 1” | .145” | CP-C825W7-ICC | ESR-4320 | Download | 50 | 1,000 | Smooth w/ Washer | |
HN120 |

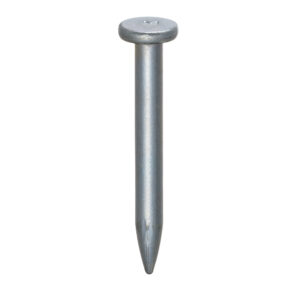

| Light Gauge Steel | Concrete | 1-1/4” | .145” | CP-C832W7-ICC | ESR-4320 | Download | 50 | 1,000 | Smooth w/ Washer | |
HN120 |

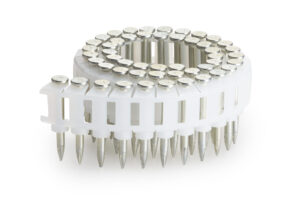

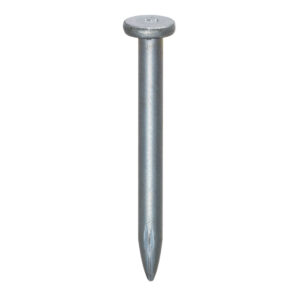

| Light Gauge Steel | Concrete | 1-1/2” | .145” | CP-C838W7-ICC | ESR-4320 | Download | 50 | 1,000 | Smooth w/ Washer | |
HN120 |
| Light Gauge Steel | Concrete | 11/16” | .118“/.102" | CP-W618W0SP | ESR-4320 | Download | 100 | 1,000 | Step w/ washer | |
HN25C |

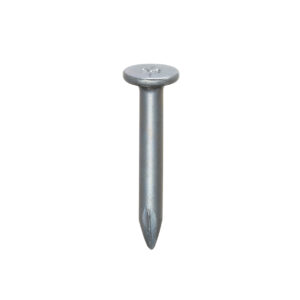

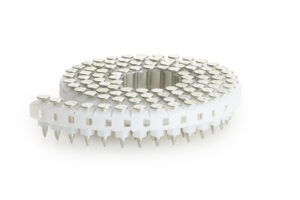

| Light Gauge Steel | Concrete | 3/4” | .102” | CP-C619V6-ICC | ESR-4320 | Download | 100 | 1,000 | Smooth w/ Washer | |
HN25C |

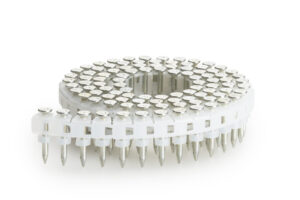

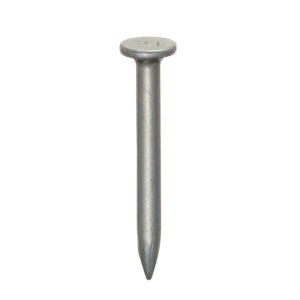

| Light Gauge Steel | Concrete | 15/16” | .102” | CP-C624V6-ICC | ESR-4320 | Download | 100 | 1,000 | Smooth w/ Washer | |
HN25C |
| Plywood ≤ 1/4” | Concrete | 15/16” | .102” | CP-C624V6-ICC | ESR-4320 | Download | 100 | 1,000 | Smooth w/ Washer | |
HN25C |
| Plywood ≤ 1/4” | Concrete | 1” | .145” | CP-C825W7-ICC | ESR-4320 | Download | 50 | 1,000 | Smooth w/ Washer | |
HN120 |

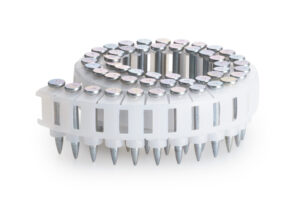

| Plywood ≤ 1/2” | Concrete | 1-1/4” | .140” | CP-C832W7-SF | Download | 50 | 1,000 | Smooth w/o Washer |  |
HN120 | |
| Plywood ≤ 5/8” | Concrete | 1-1/4” | .145” | CP-C832W7-ICC | ESR-4320 | Download | 50 | 1,000 | Smooth w/ Washer | |
HN120 |
| Plywood ≤ 3/4” | Concrete | 1-1/2” | .145” | CP-C838W7-ICC | ESR-4320 | Download | 50 | 1,000 | Smooth w/ Washer | |
HN120 |
| Plywood ≤ 3/4” | Concrete | 1-1/2” | .140” | CP-C838W7-SF | Download | 50 | 1,000 | Smooth w/o Washer | |
HN120 | |

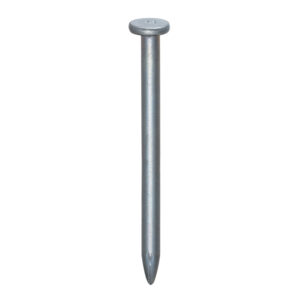

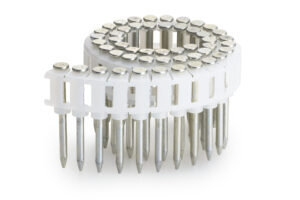

| Plywood ≤ 1” | Concrete | 2” | .145” | CP-C851W7-ICC | ESR-4320 | Download | 50 | 1,000 | Smooth w/ Washer | |
HN120 |
| 2x Wood | Concrete | 2” | .145” | CP-C851W7-ICC | ESR-4320 | Download | 50 | 1,000 | Smooth w/ Washer | |
HN120 |

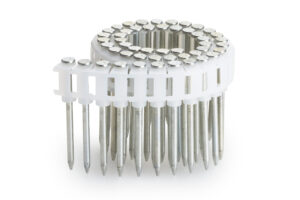

| 2x Wood | Concrete | 2-1/2” | .145” | CP-C864W7-ICC | ESR-4320 | Download | 50 | 1,000 | Smooth w/ Washer | |
HN120 |
| Cement Siding ≤ 1/2” | Concrete | 1-1/4” | .140” | CP-C832W7-SF | Download | 50 | 1,000 | Smooth w/o Washer | |
HN120 | |
| Cement Siding ≤ 3/4” | Concrete | 1-1/2” | .140” | CP-C838W7-SF | Download | 50 | 1,000 | Smooth w/o Washer | |
HN120 |
For Steel I-Beam
| Top Member | Bottom Member | Shank length | Shank Dia. | Item Name | ICC ESR Report | Testing Data | Pins/ Coil | Case Qty. | Shank Type | Shank Image | Tool |
|---|---|---|---|---|---|---|---|---|---|---|---|

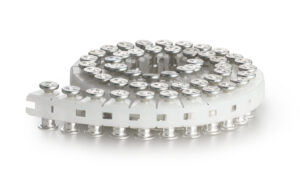

| Light Gauge Steel | Steel (Up to ½”) | 9/16” | .133”/.122” | CP-W814W4SP AL | ESR-4320 | Download | 50 | 1,000 | Step w/ Top Hat | |
HN120 |

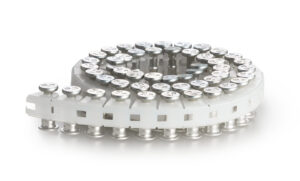

| Light Gauge Steel | Steel (Up to ½”) | 5/8” | .133”/.122” | CP-W816W4SP AL | ESR-4320 | Download | 50 | 1,000 | Step w/ Top Hat | |
HN120 |
| Light Gauge Steel | Steel (Up to ½”) | 3/4” | .133”/.122” | CP-W820W4SP AL | ESR-4320 | Download | 50 | 1,000 | Step w/ Top Hat | |
HN120 |

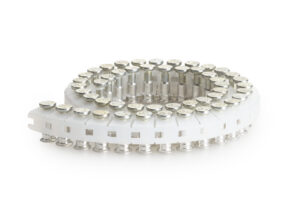

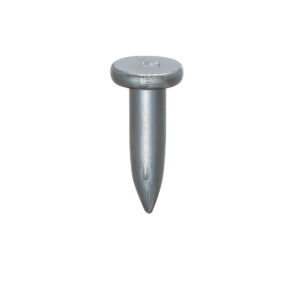

| Light Gauge Steel | Steel (Up to 3/8”) | 1/2"+.079” | .157" | CP-C815X0SP AL-ICC | ESR-4320 | Download | 50 | 1,000 | Smooth w/ Top Hat | |
HN120 |

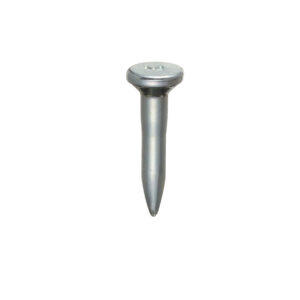

| Light Gauge Steel | Steel (Up to 3/8”) | 5/8” | .118“/.102" | CP-W616W0GP-ICC | ESR-4320 | Download | 100 | 1,000 | Step w/ washer | |
HN25C |
| Plywood ≤ 1/2” | Steel (Up to ½”) | 7/8” | .133”/.122” | CP-W823W4SP AL | ESR-4320 | Download | 50 | 1,000 | Step w/ Top Hat | |
HN120 |
| Plywood ≤ 1/2” | Steel (Up to ½”) | 7/8” | .133”/.122” | CP-W823W4SP | ESR-4320 | Download | 50 | 1,000 | Step w/ washer | |
HN120 |

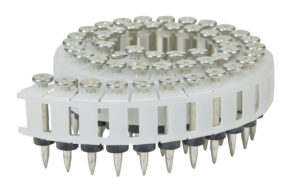

| Plywood ≤ 3/4” | Steel (Up to ½”) | 1-1/4” | .133”/.122” | CP-W833W4SP | ESR-4320 | Download | 50 | 1,000 | Step w/ washer | |
HN120 |
| Plywood ≤ 1” | Steel (Up to ½”) | 1-1/2” | .133”/.122” | CP-W838W4SP | ESR-4320 | Download | 50 | 1,000 | Step w/ washer | |
HN120 |
| 2x Wood | Steel (Up to ½”) | 2” | .133”/.122” | CP-W850W4SP | ESR-4320 | Download | 50 | 1,000 | Step w/ washer | |
HN120 |
For Light Gauge Steel (- 3/16”)
| Top Member | Bottom Member | Shank length | Shank Dia. | Item Name | ICC ESR Report | Testing Data | Pins/ Coil | Case Qty. | Shank Type | Shank Image | Tool |
|---|---|---|---|---|---|---|---|---|---|---|---|

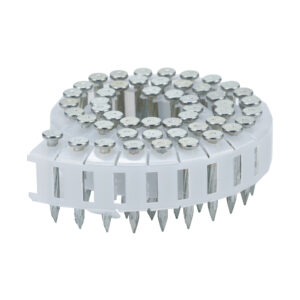

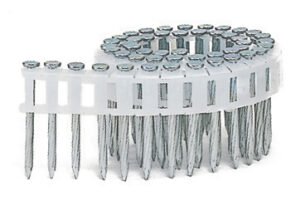

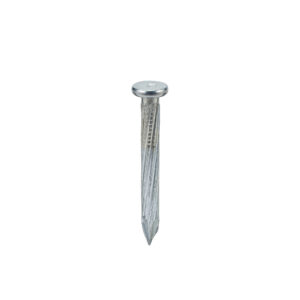

| Plywood ≤ 1/2” | Steel (Up to 3/16”) | 1-1/4” | .133” | CAP32W4-H | Download | 50 | 2,000 | Knurl |  |
HN120 | |
| Plywood ≤ 1” | Steel (Up to 3/16”) | 1-1/2” | .133” | CAP38W4-H | Download | 50 | 2,000 | Knurl | |
HN120 | |
| Wood ≤ 1-1/2” | Steel (Up to 3/16”) | 2” | .133” | CAP50W4-H | Download | 50 | 2,000 | Knurl | |
HN120 | |

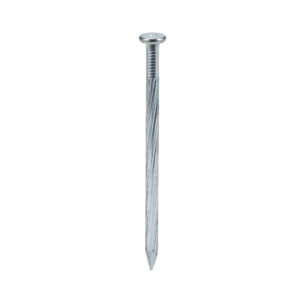

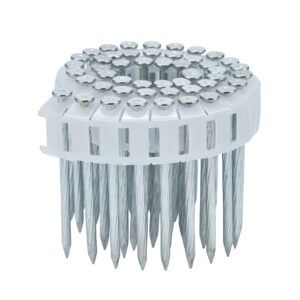

| Wood ≤ 1-1/2” | Steel (Up to 3/16”) | 2-1/2” | .133” | CAP65W4-H | Download | 50 | 2,000 | Knurl | |
HN120 |
Watch Testimonial Videos
HN25C
- Shoots from 5/8” to 1”Concrete/ Steel Pins
- Your lightest alternative for attaching drywall track to concrete only 4.4lbs.
- Slim contact nose helps to consistently drive pins for fastening metal studs.
- 100 pin magazine capacity
- Shorter contact stroke, less pressing load makes much less effort to shoot pins.
HN120
- Shoots from 9/16” to 2-1/2” Concrete/ Steel Pins
- This extremely powerful (2,231 inch lbs. driving force) high pressure MAX nail gun can shoot a variety of fasteners into steel or concrete.
- The HN120 is a faster, safer and a more cost effective alternative to powder actuated tools.
- Ultra lightweight at 6.4lbs.
