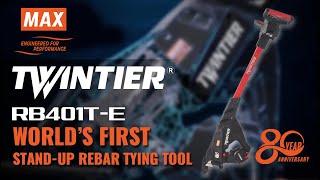

RB401T-E

Stand Up Rebar Tying Tool up to #6 x # 6 with 19ga wire

The Stand-up TWINTIER® RB401T-E is the world’s first and only battery powered stand-up solution for tying #3 x #3 to #6 on #6 rebar combinations. TWINTIER® technology allows the RB401T-E to tie 4,600 ties per charge, while delivering just the right amount of wire for greater productivity and cost savings. Compared to hand tying this tool can greatly reduce the risk of musculoskeletal injuries.

Applications

  • Road and Bridge
  • Foundations
  • Tilt-Up
  • Precast Plants
  • Water retaining Structures
  • Commercial Buildings
  • Water Treatment Tanks

Features

  • The RB401T-E is an ergonomic solution for backbreaking slab work.
  • Triggerless technology (Pat. Pending) allows the tool to instantly tie when the contact switch is engaged.
  • The TwinTier’s Dual Wire Feeding Mechanism doubles the tying speed, completing a tie in approximately ½ second, increasing productivity.
  • Compared to conventional rebar tying solutions the TwinTier’s Wire Pull Back Mechanism dispenses the precise amount of wire needed to form a tie, reducing wire usage and cutting production cost.
  • The TwinTier’s “Wire Bending Mechanism” (Patent Pending) produces a shorter tie height which requires less concrete to cover a wire tie.
  • Users can adjust the tool’s handles to 2 positions, to find the most comfortable fit for their height.

Specifications

WEIGHT
10.2 lbs
DIMENSIONS

12-3/4"(H) x 16"(W) x 43-3/8"(L)

MINIMUM TIES PER COIL
155
MAXIMUM TIES PER COIL
260
APPLICABLE WIRE PRODUCT/GA
TW1061T / 19Ga, TW1061T-PC / 19Ga, TW1061T-EG / 19Ga, TW1061T-S / 19Ga, TW1061TUSA / 19Ga
APPLICABLE REBAR SIZE
#3 x #3 - #6 x #6
TIES PER CHARGE
4600
TIE SPEED
Approx. 1/2 sec
BATTERY CHARGE TIME
Approx. 80 minutes full charge (approx. 60 minutes 80%)
BATTERY
JPL91450A
CHARGER
JC925A

Consumables / Accessories

Tool, Owner's Manual, Battery, Charger, Nose Attachment (Short & Long), Hex Wrench, Spare bolts for nose attachments, Carrying Case

Manuals

Owner's Manual

Download

Documents

Parts List

Download

Brochure

Download
